PLUS23.NAVIGATOR – Documentation and Help

Configuration

Content: configuration_en.txt

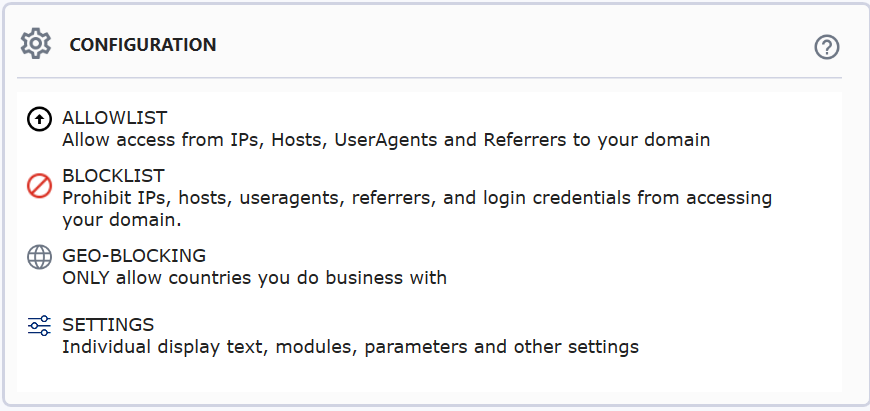

The CONFIGURATION AREA allows the individual customization of security and protection features for each protected domain.

The settings directly influence the behavior of the security engine, the analysis functions as well as various protection and filtering mechanisms. Changes should therefore be made consciously and with technical understanding.

ALLOWLIST

It may happen that certain requests must be allowed despite active security rules, even though they were previously blocked by PLUS23.CYBER.SECURITY.

This depends, among other things, on which system, content management system, plugin or web application is being used and whether the respective programming uses clean and standards-compliant requests.

Even with our security signatures, unwanted blocking may occur in rare cases. We are therefore grateful for reports regarding incorrect or overly restrictive signatures in order to continuously improve detection quality.

The ALLOWLIST can be fully enabled or disabled at any time, or adjusted for individual entries.

Entries are added within the individual subcategories of:

Bot and Spyware Defense (Host, IP, IP Range, CIDR Block, UserAgent, Referrer)
Hacker Defense (Injection, REGEX)

An additional note can also be stored for each entry as internal reference information.

If permissions are granted within the following areas:

IP
HOST
IP RANGE
CIDR BLOCK

then GEO-BLOCKING will additionally be bypassed for these areas.

NOTICE: Allowed IP addresses should be monitored regularly and removed again if necessary.

EXTREME CAUTION is especially required when allowing:

CIDR Blocks
IP Ranges

These should only be used for absolutely trusted network ranges.

Within the text-based areas:

Host
UserAgent
Referrer

PLUS23.CYBER.SECURITY partially works with partial matches.

Therefore, it is recommended to enter values as precisely as possible.
Example of a complete hostname:

unn-84-17-48-205.cdn77.com

Usually, an injection release (Hacker Defense) is performed ONLY if an unwanted block occurred previously. In this case, you should determine the details of the security event, read the corresponding injection ID and then release it specifically.

Example:

In the displayed example, the injection ID is: 375

This ID can then be identified via the search function and specifically released.

As already described in the section Injection (Hacker Defense), REGEX releases work according to a similar principle. However, it should be noted that requests detected by REGEX defense are generally classified as particularly severe attacks and may automatically be stored in the BLOCKLIST.

Therefore, special caution is required for REGEX releases. These should only be used if the functionality of your system or specific applications is affected.

The injection and REGEX entries can additionally be copied to the clipboard and further processed for analysis.

BLOCKLIST

The BLOCKLIST is used for the targeted blocking of unwanted requests, network ranges or suspicious behavior patterns.

The structure is based on the ALLOWLIST and supports, among other things, IP addresses, IP ranges, CIDR blocks, hosts, user agents, referrers and email filters.

Examples for email filters:

%plus23.org - blocks all email addresses from plus23.org
%plus23% - blocks all email addresses containing the term plus23
support@plus23.org - blocks only this specific email address

The % character acts as a wildcard for any sequence of characters.

If blocklist heuristics are active, IP addresses can automatically be blocked. The triggering security CODE will be documented within the notes.

GEO-BLOCKING (BLOCK COUNTRIES)

Using GEO-BLOCKING, requests from specific countries can be restricted or completely blocked.

This helps reduce the attack surface if your website, shop or application is intended only for specific target markets.

Restricting access to selected countries can additionally help reduce automated traffic, TOR, VPN, proxy or relay activities.

However, international networks, CDN systems or cloud infrastructures may cause country identifiers or network assignments to differ.

SETTINGS

In the SETTINGS, you can individually customize the behavior of the security engine, modules, parameters and display texts.

CUSTOM DISPLAY TEXT

The custom display text is shown when a request has been blocked by PLUS23.CYBER.SECURITY. The template supports HTML and can be adapted to your design.

The file error_template_XX.txt from the standard template can be downloaded and customized within the user account.

The following placeholders are available:

{#DOMAIN#}
Name of the protected domain, for example plus23.org
{#TITLE#}
Title or headline of the security event
{#DESCRIPTION#}
Description of the detected attack or security event
{#IP#}
Detected IP address of the visitor or attacker
{#HOST#}
Resolved hostname of the IP address
{#ISOCODE#}
ISO country code of the detected IP address
{#USERAGENT#}
Browser, device or bot identifier of the visitor

If you use the default suggestion, replace yourmail with your own contact address.

Test Request:
https://yourdomain.com?ID=plus23_engine_test

MODULES

The security engine consists of multiple protection modules. In general, we recommend keeping all modules enabled.

Scanner Defense
Detects automated file and directory scans, which are often used to prepare attacks.

Bruteforce Defense
Detects repeated login or access attempts. Timeouts and attempt limits can be customized. We recommend using the default values.

Bot and Spyware Defense
Analyzes, among other things, host, CIDR block, IP, referrer and user agent to detect unwanted bots, crawlers or suspicious network sources.

Hacker Defense
Detects common attack patterns such as SQL injection, XSS, remote file inclusion and other manipulation attempts.

Country Defense
Controls country-based access restrictions. If your target audience is international, the GEO configuration should be adjusted carefully.

DOCUMENTATION & HEURISTICS

Document Attacks
With this setting, the logging of security events can be disabled. Protection remains active, but events are no longer recorded. Disabling this feature is not recommended.

Enable Blocklist Heuristics
For certain security CODES, the accessing IP address can automatically be added to the BLOCKLIST. This includes, among others, CODES such as 13-2, 13-3, 15-1, 15-2, 15-4, 16-10 and 30.

A special case is CODE 15-5 for IP Fake Defense. This behavior can be configured separately within the parameters.

AUTOMATIC UPDATES

Automatic updates help keep domain data, security information and signatures up to date. This ensures that protection rules and detection mechanisms remain current.

LANGUAGE PER DOMAIN

A separate system language can be defined for each domain. PLUS23 automatically loads system messages, information texts and security details in the selected language.

EXTERNAL API

The local signatures of the PLUS23.CYBER.SECURITY engine already contain many entries for detecting unwanted requests from TOR, VPNs, PROXIES and CLOUD/RELAY servers.

However, since such networks constantly change, the EXTERNAL API can additionally be enabled. This verification is not performed directly on your domain, but through external centralized security and analysis servers.

If delays occur on time-critical websites, the EXTERNAL API can be disabled.

TOR ONLY
Checks exclusively for TOR servers. VPNs, proxies and cloud/relay servers are not additionally checked.

All TOR, VPN, Proxies, Cloud/Relay
Checks TOR, VPNs, proxies as well as cloud/relay infrastructures. For this mode, registration at vpnapi.io may be required.

The free version of vpnapi.io provides a limited quota. Speed and availability may vary depending on API load and provider conditions.

For more powerful API requests, a paid API plan at vpnapi.io may be required.

When using external services, their Terms of Use and Privacy Policy also apply.

More information about TOR, VPNs, proxies and cloud/relay systems can be found at: plus23.substack.com

PARAMETERS

Special Defense Against Extreme Attacks
These parameters belong to the Bot and Spyware Defense as well as the Hacker Defense. If blocklist heuristics are enabled, accessing IP addresses can automatically be blocked.

IP Fake Defense
Detects suspicious or contradictory IP information within headers. Since some providers do not set headers cleanly or consistently, blocklist storage can be configured separately.

URL Bypass Defense
Detects severe bypass or manipulation attempts. The accessing IP can immediately be added to the blocklist.

Regular Expression Defense
Detects particularly suspicious access patterns. REGEX matches are often considered severe attacks and may also result in blocking.

Detection of TOR, VPN, Proxies, Cloud/Relay Providers
These parameters are part of the Bot and Spyware Defense. A proxy provider may simultaneously be detected as a source of extreme attacks. If the EXTERNAL API is enabled, these parameters are additionally considered.
